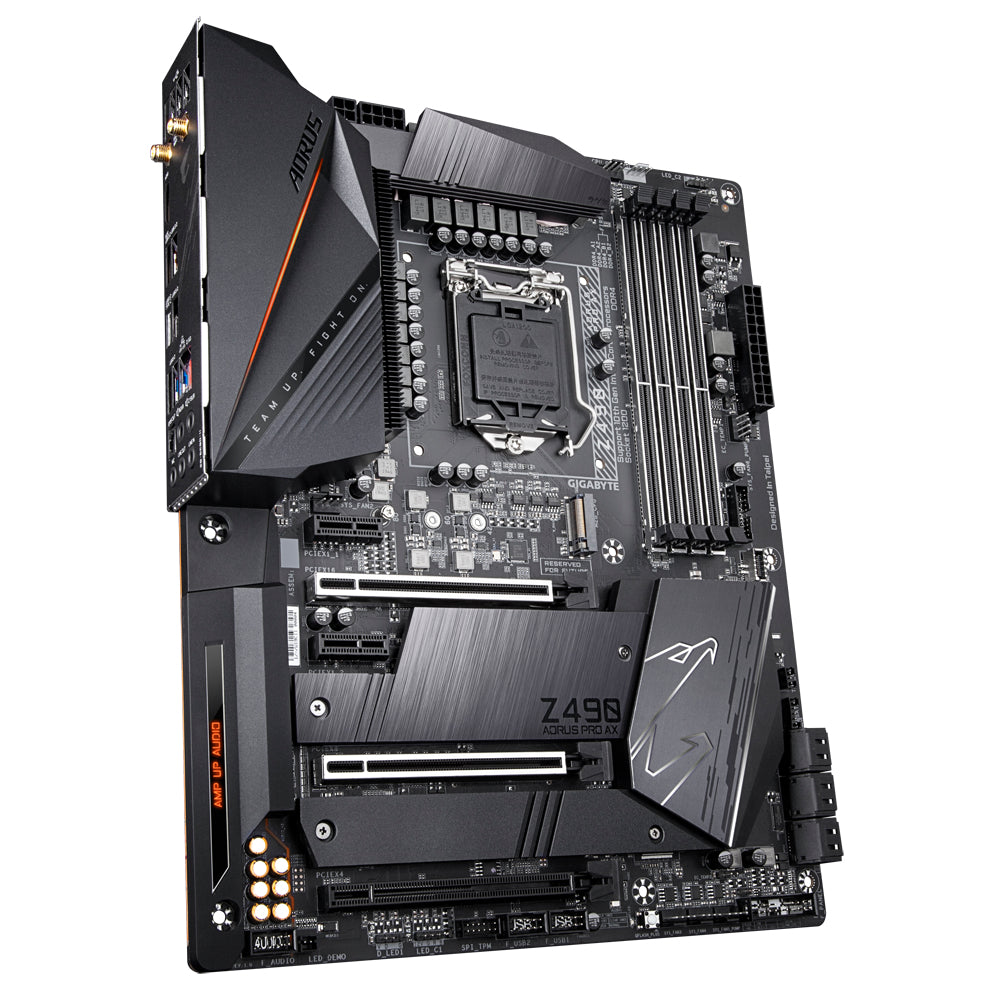

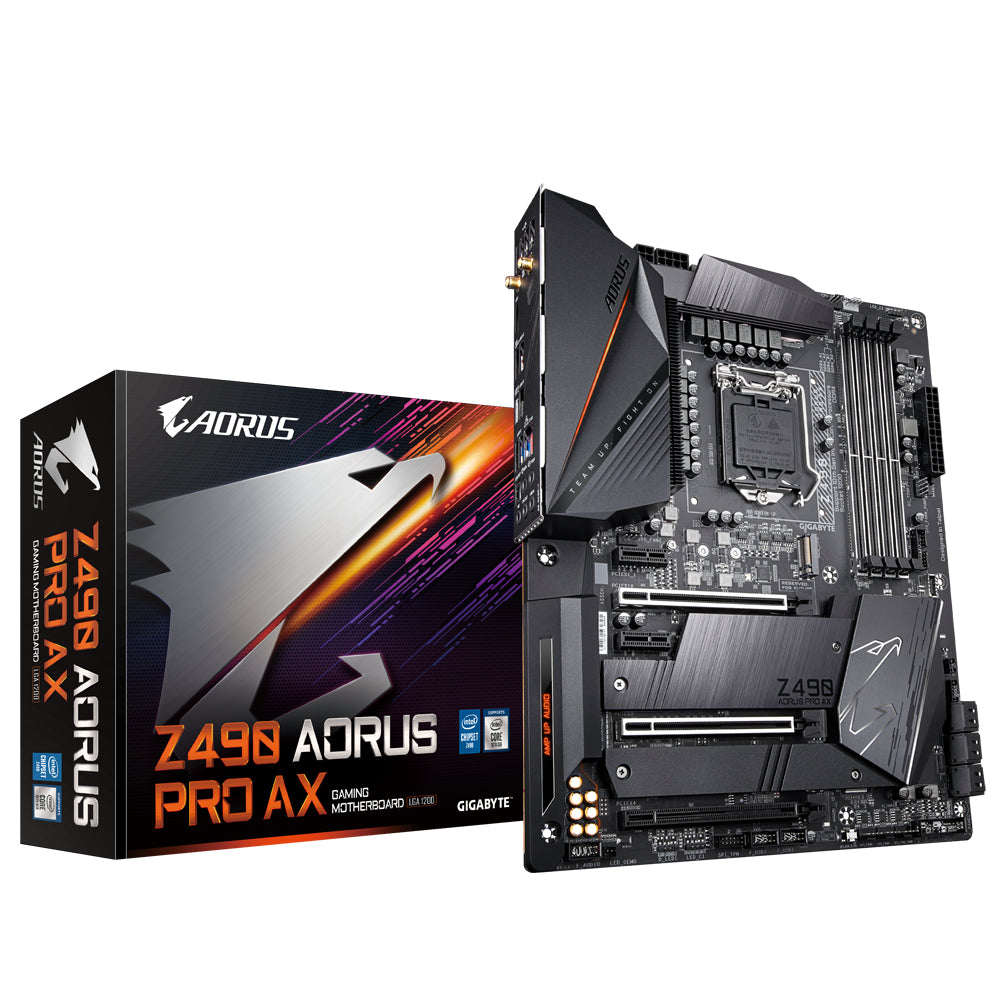

Gigabyte Z490 Aorus Pro AX DDR4 ATX Motherboard - Z490AORUSPROAX
- Regular price
- $309.99
- Unit price
- per
Availability:
Out of Stock
Real time Availability
Couldn't load pickup availability
Live Inventory
Gigabyte Z490 Aorus Pro AX DDR4 ATX Motherboard - Z490AORUSPROAX
- Item Condition: Brand New
- Free Shipping:
On Orders $249+
- Fastest Shipping:
Most orders placed with CompTechDirect will processed within one day handling and get your product to you quickly as possible. Our products are shipped directly by one of several leading distributors or direct from the product manufacturer.
- 30 Days Returns:
We want you to be completely satisfied with every purchase you make. If you are in any way dissatisfied with a product you ordered, we’ll exchange it, replace it or refund your money within 30 days of purchase.
Our inventory levels change often, please see above for the most current availability in stock.
Gigabyte Z490 Aorus Pro AX DDR4 ATX Motherboard - Z490AORUSPROAX
| Specification: | |
|---|---|
General Information |
|
| Product Condition: | Brand New |
| Manufacturer: | Gigabyte |
| Manufacturer Part: | Z490AORUSPROAX |
| Model Name: | Z490 Aorus Pro AX |
| Product Name: | Gigabyte Z490 Aorus Pro AX DDR4 ATX Motherboard |
| Motherboard Form Factor: | ATX Form Factor |
Processor & Chipset |
|
| Processor Manufacturer: | Intel |
| Processor Socket: | LGA1200 |
| Compatible Processor Series: | 10th Gen Intel Core Processors |
| Chipset: | Z490 |
Memory |
|
| Maximum Internal Memory Supported: | 128 GB |
| Supported Memory Types: | DDR4-SDRAM |
| Memory Slot Type: | DIMM |
| No. of Memory Slots: | 4 |
| Memory Channels: | Dual-channel |
Storage |
|
| Supported Storage Drive Interfaces: | Serial ATA III |
| Supported Storage Drive types: | HDD & SSD |
| Supported RAID Levels: | 0,1,5,10 |
Graphics |
|
| Graphics Type: | Integrated Graphics Processor |
| HDCP Support: | Yes |
Network & Communication |
|
| Wireless LAN: | Yes |
| Wireless Connectivity: | 802.11ac Wi-Fi |
| Network Interface: | 2.5 Gigabit Ethernet (RJ 45) |
| Bluetooth: | Yes |
| Ethernet: | Yes |
Audio |
|
| Audio output channels: | 7.1 channels |
| Audio Chip: | Realtek ALC1220-VB codec |
Ports & Connectors |
|

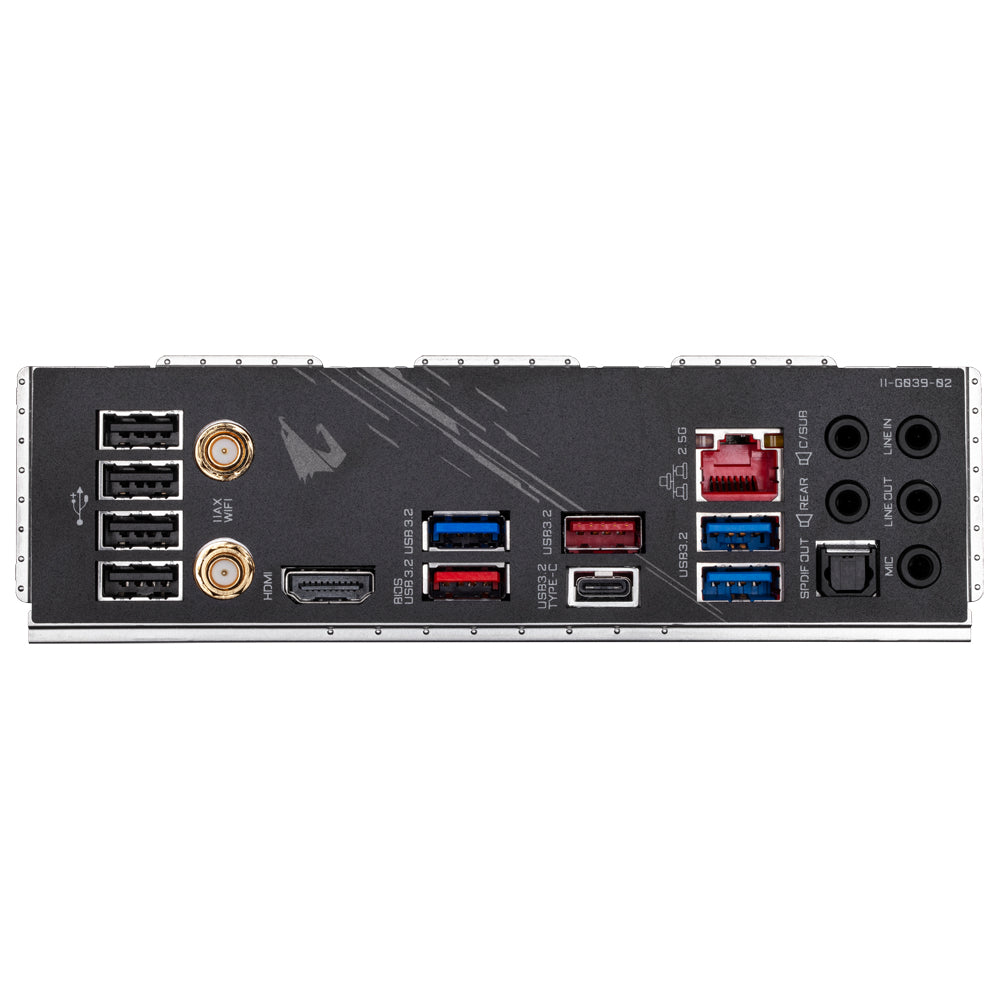

| Rear I/O Ports: |
1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Ports: |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
Software |
|
| Operating System Platform: | Windows |
| Operating System: | Support for Windows 10 64-bit |
Dimensions & Weights |
|
| Unit Dimensions (W"x D"): | 9.61" x 12" |
What's Included |
|
| Package Contents: | Gigabyte Z490 Aorus Pro AX DDR4 ATX Motherboard |
Warranty Info
- Limited Warranty period (parts & labor): 3 Year Warranty
- Gigabyte Tech Support Phone # 626-854-9338
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
