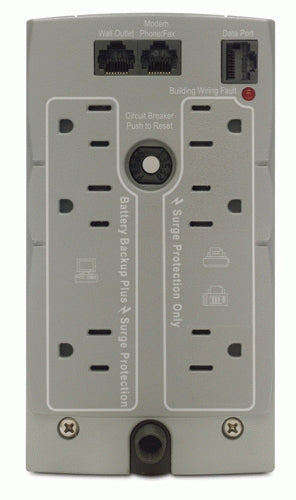

APC Back-UPS CS 500 120V Backup System, 500VA, 300W - BK500
Power Protection

APC Back-UPS CS 500 120V Backup System, 500VA, 300W - BK500

  • MFG # BK500
  • Vendor: APC by Schneider Electric
  • Item Condition: Brand New
Availability: In Stock Real time Availability

Wishlist Compare

APC Back-UPS CS 500 UPS System - BK500



General Information

Product Condition: Brand New
Manufacturer : APC by Schneider Electric
Manufacturer Part : BK500
Product Name : BK500 120V Backup System
Product Line : Back-UPS
Product Series: CS
Product Type : Line-interactive UPS
Product Color : Beige

Technical Specifications

Plug/Connector Type: NEMA 5-15P
Receptacles: 3 x NEMA 5-15R
Dataline Protection: RJ-11
Bypass Switch: Not Provided
Cord Length: 6 ft
Topology: Standby

Power Description

Load Capacity: 500 VA
Input Voltage : 110 V AC
Output Voltage: 120 V AC
Power Consumption: 300 W
Waveform Type: Step Wave
Surge Energy Rating: 480 J
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Transfer Time: 8ms typical : 12ms maximum

Battery Information

Battery Characteristics : Maintenance-free, Spill-proof
Battery Chemistry : Sealed Lead Acid (SLA)
Backup/Run Time : (Full Load): 3 Minute
(Half Load): 15 Minute
Typical Battery Recharge Time : 8 hour

Control Panel

Status Indicators : LED status display with On Line, On Battery, Replace Battery, Site wiring Fault and Overload indicators

Alarm Management

Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Input Signals : 1 x DB-9 Serial
1 x USB
1 x RJ-11


Additional Information : Additional Surge Protected Outlets
Cord Management
USB compatible
Certifications & Standards: FCC Part 15 Class B
Industry Canada
UL 1778
Environmentally Friendly
cUL Listed
Country of Origin: Philippines

Dimensions & Weight

Unit Dimensions (W"x H"x D") : 3.6" x 6.5" x 11.2"
Weight : 13.80 Lbs

What's Included

Package Contents : APC Back-UPS CS 500 UPS System
CD with software
User Manual
USB Cable
Velcro Cord Management Straps Kit



Warranty Info

  • Limited Warranty period (parts & labor): 3 Year Warranty
  • APC Tech Support Phone: #800-890-4272


Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
