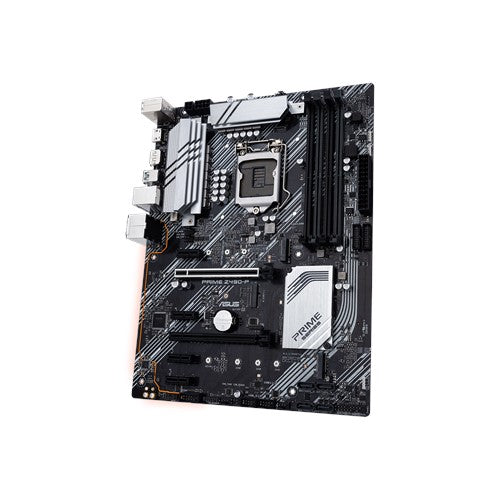

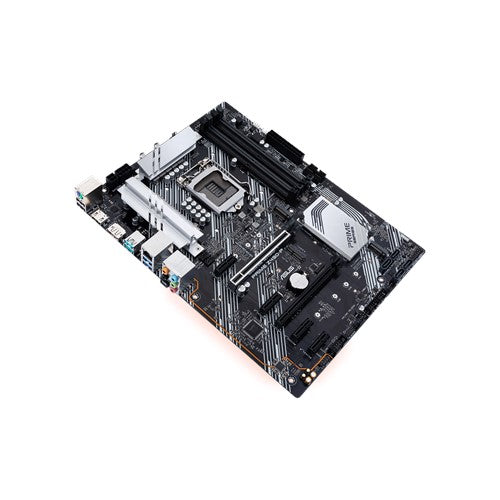

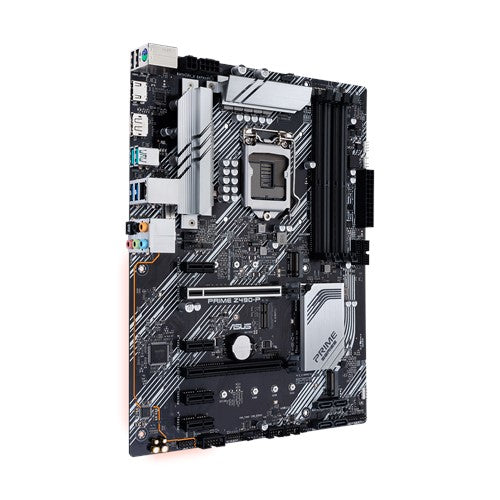

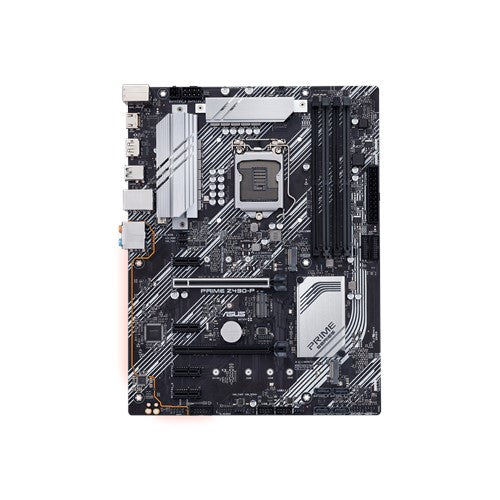

ASUS Prime Z490-P LGA 1200 (Intel 10th Gen) ATX Motherboard - 90MB12V0-M0AAY0
- Regular price
- $199.99
- Unit price
- per
Availability:
Out of Stock
Real time Availability
Couldn't load pickup availability
Live Inventory
ASUS Prime Z490-P LGA 1200 (Intel 10th Gen) ATX Motherboard - 90MB12V0-M0AAY0
- Item Condition: Brand New
- Free Shipping:
On Orders $249+
- Fastest Shipping:
Most orders placed with CompTechDirect will processed within one day handling and get your product to you quickly as possible. Our products are shipped directly by one of several leading distributors or direct from the product manufacturer.
- 30 Days Returns:
We want you to be completely satisfied with every purchase you make. If you are in any way dissatisfied with a product you ordered, we’ll exchange it, replace it or refund your money within 30 days of purchase.
Our inventory levels change often, please see above for the most current availability in stock.
ASUS Prime Z490-P LGA 1200 ATX Motherboard- 90MB12V0-M0AAY0
| Specification: | |
|---|---|
General Information |
|
| Product Condition: | Brand New |
| Manufacturer: | Asus |
| Manufacturer Part: | 90MB12V0-M0AAY0 |
| Model Name: | Prime Z490-P |
| Product Name: | ASUS Prime Z490-P LGA 1200 ATX Motherboard |
| Motherboard Form Factor: | ATX Form Factor |
Processor & Chipset |
|
| Processor Manufacturer: | Intel |
| Processor Socket: | LGA1200 |
| Compatible Processor Series: | 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset: | Z490 |
Memory |
|
| Maximum Internal Memory: | 128 GB |
| Memory Supported: | DDR4-SDRAM |
| Memory Slot Type: | DIMM |
| No. of Memory Slots: | 4 |
| Memory Channels: | Dual-channel |
Storage |
|
| Supported Storage Drive Interfaces: | M.2,Serial ATA III |
| Supported Storage Drive types: | HDD & SSD |
| Supported RAID Levels: | 0,1,5,10 |
Graphics |
|
| Graphics Type: | Integrated Graphics Processor |
| Maximum Resolution: | 4096 x 2304 pixels |
Network & Communication |
|
| Wireless LAN: |
None |
| Wireless Connectivity: |
None |
| Network Interface: | Realtek RTL8111H Gigabit Ethernet (RJ 45) |
| Bluetooth: | None |
| Ethernet: | Yes |
Audio |
|
| Audio output channels: | 8 channels |
| Audio Chip: | Realtek ALC887 |
Ports & Connectors |
|
| Rear I/O Ports: |
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports: |
1 x CPU Fan connector 3 x Chassis Fan connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connectors 1 x AIO_PUMP connector 1 x Thunderbolt header 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper 1 x System panel connector 1 x COM port header |
Software |
|
| Operating System Platform: | Windows |
| Operating System: |
Windows 10 64-bit |
Dimensions & Weights |
|
| Unit Dimensions (W"x D"): | 12" x 9.2" |
What's Included |
|
| Package Contents: |
ASUS Prime Z490-P LGA 1200 ATX Motherboard User's manual I/O Shield 2 x SATA 6Gb/s cables 1 x Supporting DVD 1 x M.2 SSD screw package 1 xM.2 Key E screw package |
Warranty Info
- Limited Warranty period (parts & labor): 3 Year Warranty
- Asus Tech Support Phone # 1-888-678-3688
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
