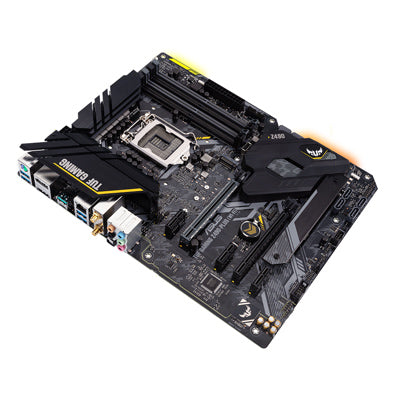

ASUS TUF Gaming Z490-Plus (WiFi 6), LGA 1200 (Intel 10th Gen) ATX Motherboard - 90MB1330-M0AAY0
Computer Accessories

ASUS TUF Gaming Z490-Plus (WiFi 6), LGA 1200 (Intel 10th Gen) ATX Motherboard - 90MB1330-M0AAY0

  • MFG # 90MB1330-M0AAY0
  • Vendor: Asus
  • Item Condition: Brand New
Availability: Out of Stock Real time Availability

ASUS TUF Gaming Z490-Plus (WiFi 6) - 90MB1330-M0AAY0


General Information

Product Condition: Brand New
Manufacturer: Asus
Manufacturer Part: 90MB1330-M0AAY0
Model Name: Z490-Plus
Product Name: ASUS TUF Gaming Z490-Plus (WiFi 6)
Motherboard Form Factor: ATX Form Factor

Processor & Chipset

Processor Manufacturer: Intel
Processor Socket: LGA1200
Compatible Processor Series: 10th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset: Z490


Maximum Internal Memory: 128 GB
Memory Supported: DDR4-SDRAM
Memory Slot Type: DIMM
No. of Memory Slots: 4
Memory Channels: Dual-channel


Supported Storage Drive Interfaces: M.2,Serial ATA III
Supported Storage Drive types: HDD & SSD
Supported RAID Levels: 0,1,5,10


Graphics Type: Integrated Graphics Processor
Maximum Resolution: 4096 x 2304 pixels

Network & Communication

Wireless LAN: Yes
Wireless Connectivity: 802.11ax Wi-Fi
Network Interface: Intel I219-V 1Gb Ethernet (RJ 45)
Bluetooth: Yes
Ethernet: Yes


Audio output channels: 7.1 channels
Audio Chip: Realtek ALC S1200A

Ports & Connectors

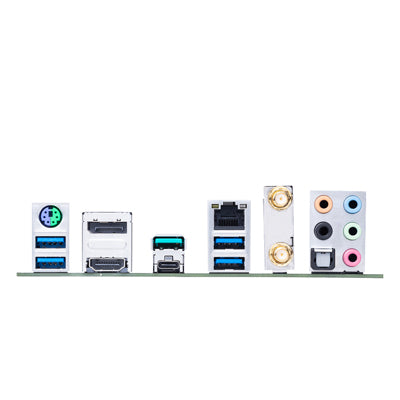

Rear I/O Ports: 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
Internal I/O Ports: 1 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
2 x USB 2.0
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers/div>


Operating System Platform: Windows
Operating System: Windows 10 64-bit

Dimensions & Weights

Unit Dimensions (W"x D"): 12" x 9.6"

What's Included

Package Contents: ASUS TUF Gaming Z490-Plus (WiFi 6)
User's manual
1 x ASUS Fan Holder
I / O Shield
2 x SATA 6Gb / s cables
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card
1 x Wi-Fi moving antenna



Warranty Info

  • Limited Warranty period (parts & labor): 3 Year Warranty
  • Asus Tech Support Phone # 1-888-678-3688


Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
