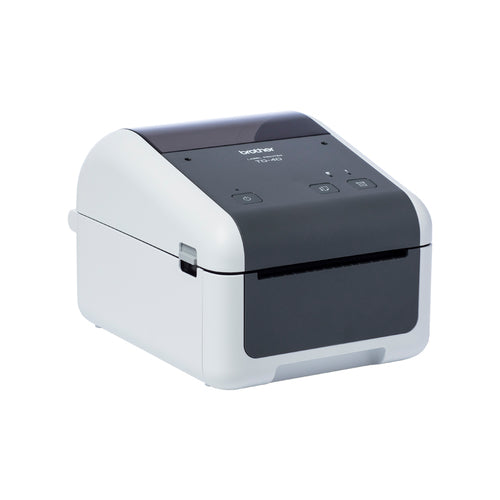

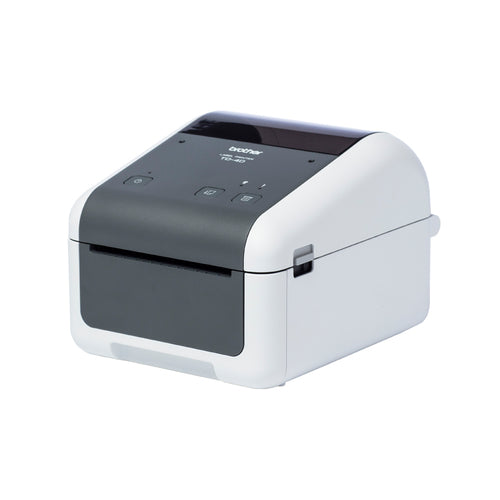

Brother TD-4420DN Desktop Direct Thermal Printer- TD4420DN
TD4420DN BrotherSpecification: | |
---|---|
General Information |
|
Product Condition: | Brand New |
Manufacturer: | Brother |
Model Name: | TD4420DN |
Manufacturer Part: | TD-4420DN |
Product Name: | Brother TD-4420DN Desktop Direct Thermal Printer |
Housing Color: | Gray/White |
Hardware Features |
|
Model Type: | 4.3" Desktop Direct Thermal Printer |
Connectivity Technology: | Wired |
Connectivity Technology: | USB, LAN Ethernet |
Media Exit Features: | Tear Up, Peeler, Cutter |
Media Feed Features: | Drop In Roll, Adjustable Roll Holder, External Slot |
Display: |
None |
Printing Features |
|
Printing Method: | Direct Thermal |
Maximum Print Resolution: | 203 dpi |
Maximum Print Width: | 4.27" (108.4mm) |
Print Commands: | ZPL II, CPCL, Raster Graphics, Text (Template) ESC P |
Bitmap Fonts: | Helsinki, Brussels, Letter Gothic Bold, Gothic, San Diego, Brougham |
Stored Templates: | Up to 99 |
2 Dimensional Barcodes: | PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec |
Linear Barcodes: | Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET |
Consumable Types: | Receipts, Labels, Tags, Wristbands |
Consumable Thickness: |
Receipt: 2.3mil to 3.5mil (0.058mm to 0.090mm) Label: 3.1mil to 6.7mil (0.080mm to 0.170mm) Tag: 3.5mil to 5.3mil (0.090mm to 0.135mm) |
Consumable Format: | Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media |
Media Width: | 4.65" |
Maximum Roll Diameter: | 0.50" |
Media Sensor Types: | Transmissive (Gap, Hole), Reflective (Adjustable Position Black Bar, Hole), Out of Paper |
Memory |
|
Available Memory: |
Flash: 64MB Flash Internal: 256MB SDRAM |
Compatibility |
|
Supported Operating System: | Windows 10 (32/64bit), Windows Server 2003, Windows 8 (32/64bit), Windows 7 (32/64bit), Windows XP, Android v2.2 or later, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Linux Red Hat and Debian |
Print Driver Compatibility: | Windows, Linux |
Interfaces |
|
Wi-Fi Standards: |
None |
Bluetooth: |
None |
Ethernet LAN Port: | 1 |
RS-232C Serial Port: | 1 |
USB 2.0 ports: | 1 |
Power |
|
Power Supply: | 24VDC 5A |
Dimensions & weights |
|
Unit Dimensions: | 7.08" x 8.82" x 6.10" |
Housing Weight (lbs): | 4.58 lbs |
Carton Contents |
|
Included Items: | Brother TD-4420DN Desktop Direct Thermal Printer, USB Cable, AC Adapter, Power Cable, Printed Guides, Software |
